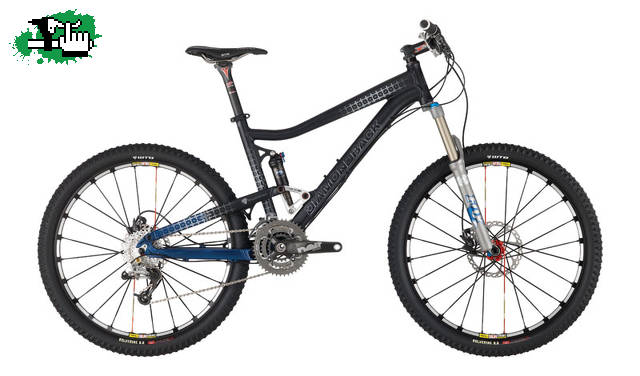

diamondback `09 sortie

Sizes
SM (15.5"), MD (17"), LG (19"), XL (21")
Frame
Sortie Trail 5" Aluminum w/ Hydroformed Top Tube, Butted / Formed Down Tube / Seatstays, Under Arch Seatstay bridge, Knuckle Box Technology
Fork
Fox 32 Float RLC Air, 130mm travel, open bath, with ext. compression / rebound / lock out knobs butted Alloy steerer, 32mm Easton aluminum stanchions, magnesium lowers, w/15mm thru axle
Rear Shock
Fox Float RP23 190x51mm Air w/ rebound adj, 3
Cranks
Truvativ NOIR Giga X Pipe 3.3 AL-66 arms, 7075 aluminum outer/middle/inner rings, 22/32/44t
Bottom Bracket
Truvativ Giga X Pipe Outboard Sealed Cartridge
F. Derailleur
Shimano 770 XT dual pull, top swing
R. Derailleur
SRAM XO Medium Cage
Shifter
SRAM XO 9spd trigger
Brake Levers
Hayes Stroker - Gram w/Reach adj.
Brakes
Hayes Stroker Gram Hydraulic Disc w/ V7" frt / V6" rear Rotors
Gear
SRAM PG-990 9spd Cassette (11-34t)
Rims
24h Mavic Crossmax SLR
Tires
WTB Wolverine 2.2 UST, Folding
Pedals
DB Sound Alloy w/ molded traction pins
Handlebar
Easton Monkey lite XC CNT LoRise Carbon 31.8mm
Stem
Easton EA90 31.8mm
Seatpost
Easton EC90 CARBON Double bolt clamp 30.9mm
Seat
WTB DEVO Carbon
Headset
Integrated "Cane Creek" Size Drop-in ACB 1 1/8"
Colors
Black n' Blue
Chain
Integrated "Cane Creek" Size Drop-in ACB 1 1/8"
Hubset
(F) 24h Mavic Crossmax SLR Disc 15mm Thru Axle (R) 24h Mavic Crossmax SLR Disc Cassette
Spokes
Mavic Crossmax SLR, Zircal Double Butted Bladed
Grips
DB 130mm D2 Kraton
Extras
DB Key Chain, Owner’s manual / Sortie owner's manual cover, Chainstay Protector, Clear Coat, H20 bottle mounts
